DRE as a Databricks job

You already run your pipelines on Databricks. DRE installs from a Python wheel inside a Databricks job, reads from your warehouse, and writes the result straight to a Unity Catalog Volume, where the volume is mounted on the job’s compute.

Recorded from a real run on Databricks serverless: the job in the Databricks UI, then the file it wrote to a Volume.

Recorded from a real run on Databricks serverless: the job in the Databricks UI, then the file it wrote to a Volume.

What it produces

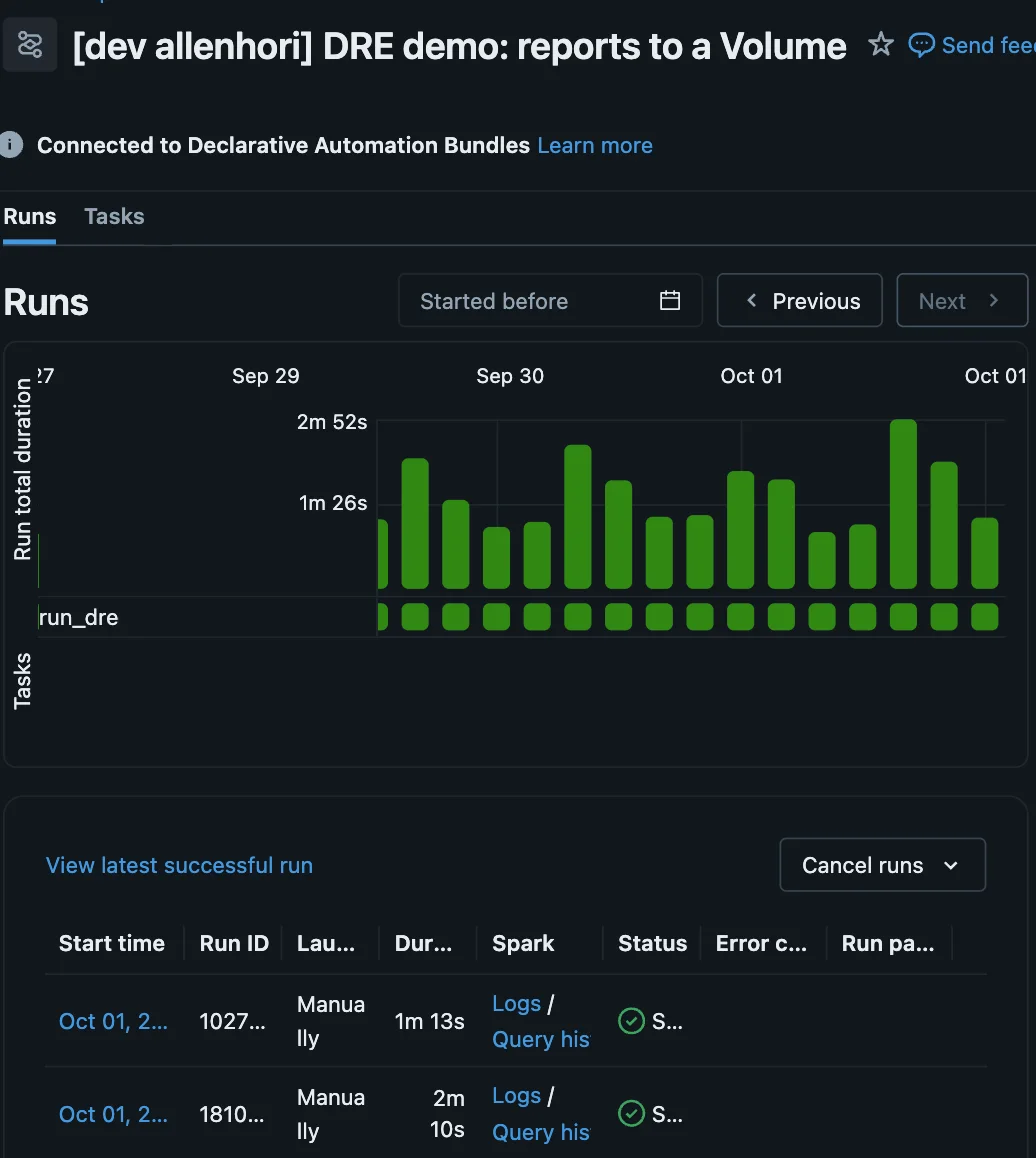

The DRE demo job in Databricks Jobs & Pipelines, with its run history and succeeded runs
The job in Databricks (Jobs & Pipelines), cropped to the run history.

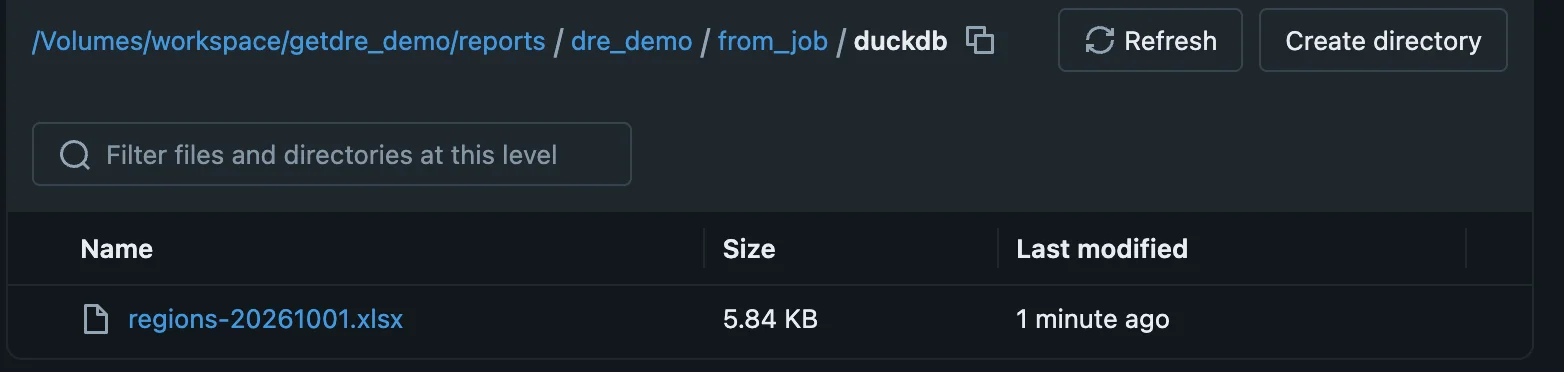

The Volume folder dre_demo/from_job/duckdb in Databricks Catalog Explorer, listing regions-20261001.xlsx
What the job wrote: a Volume folder in Catalog Explorer, cropped to the file listing.

How it’s built

The report’s SQL and YAML, as they sit in the project, and the commands that run it.

databricks.yml (the job)
resources:
  jobs:
    dre_reports:
      name: "DRE demo: reports to a Volume"
      description: Installs DRE from the dre-cli wheel and runs the project's `job` reports.
      max_concurrent_runs: 1
      tasks:
        - task_key: run_dre
          environment_key: dre
          spark_python_task:
            python_file: ./bundle/run_dre.py
            parameters:
              - --root
              - ${workspace.file_path}
              - --select
              - "tag:job"
              - --set
              - all
              - --http-path
              - ${var.warehouse_http_path}
              - --volume
              - ${var.volume}
              - --run-date
              - ${var.run_date}
              - --target-check
              - ${var.target_check}
              - --plugins-dir
              - ${var.plugins_dir}
      environments:
        - environment_key: dre
          spec:
            client: "2"
            dependencies:
              - ${var.wheel}
              - databricks-sdk>=0.40
reports/job/job_duckdb_to_volume.yml
# Run by the Databricks job (bundle/): DuckDB data shipped with the job, written to the Volume.
# On Databricks compute the volume is mounted, so DRE copies to /Volumes directly.
queries:
  - {query: job_region_summary, tab_name: Regions}
  - {query: job_run_facts, tab_name: Run}
output:
  format: xlsx
  destination:
    profile: vol_auto
    path: "{{ env_var('DATABRICKS_VOLUME', '/Volumes/workspace/career_vista/dre_output') }}/dre_demo/from_job/duckdb/regions-{{ run.date.yyyymmdd }}.xlsx"
terminal
databricks bundle deploy -p DEFAULT --var "wheel=./dist/dre_cli-0.1.0-py3-none-manylinux_2_35_aarch64.whl"
databricks bundle run dre_reports -p DEFAULT --var "wheel=./dist/dre_cli-0.1.0-py3-none-manylinux_2_35_aarch64.whl"
